Striker X Lightning Event Counter Display Model: Electromechanical display (non re-settable) Current Tested (10/350 µs): 100 kA Start Sensitivity (8/20 µs): 1500 A Current Sample Mode: Inductive Probe (Built-in) Indicator: 6 digits Operating temperature (°C): -20 ~ +85 Enclosure material: Plastic Degree of protection: IP 67 (IEC 529) Dimension of counter (cm): 16 (L) x 9 (W) x 6 (H) FEATURES: • IP 67 rated enclosure suitable for external application. • Ease of installation, Striker X can be retro-fitted to any lightning protection system. • Non-intrusive and fast acting proximity circuit detects lightning transient currents. • Non resettable electro-mechanical counter. • Can be mounted at any location along the down conductor. Size: 170 x 82 x 60 mm Material: Stainless chrome (304) / PVC Discharge measurement Power: 150 kA Installation location: Lightning Protection Systems. Testability: Mechanical Standard: NF C 17-102 (2011) latest version

In the active lightning, the jump range is the test to control DT. The purpose of this test is whether this jump interval is short-circuited when the lightning rod is exposed to lightning current. (To work when the electric charge in the clouds is 10-20 KV/M). If it has been short-circuited it will not perform its function as an active lightning rod. Use: The tester’s cable connects to the socket on the active lightning rods, the button is pressed. If the red LED is lit, the Ion Generator is malfunctioning. It can’t act as an active lightning rod. The Green generator is solid if the green LED is lit.

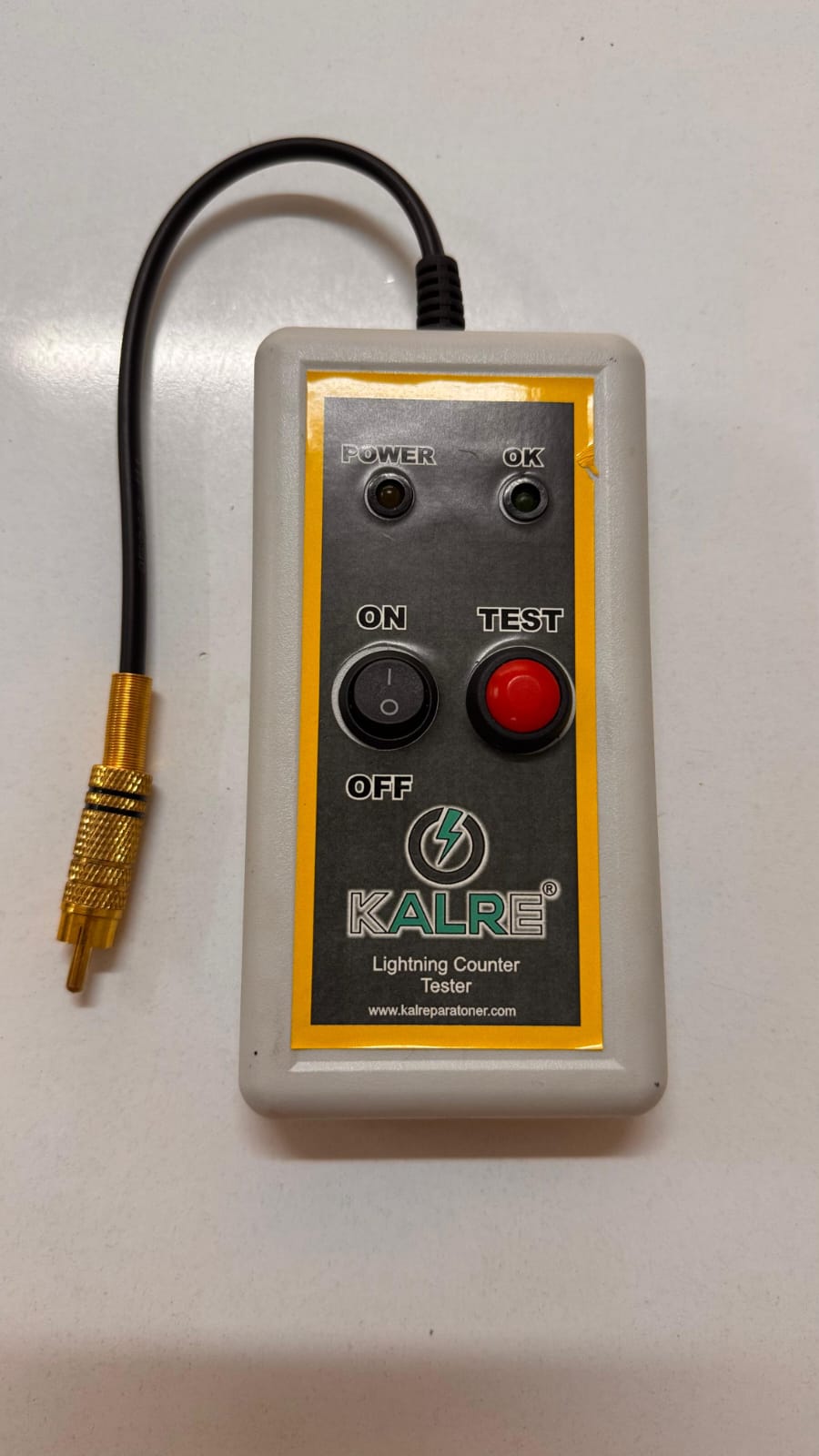

This device is used to test whether lightning counters (like KLR 01) are functioning correctly. It ensures the reliability of the lightning protection system by periodically checking the functions of existing counters in the field. Features: • Portable and easy to use. • Provides fast and reliable test results. • Compatible with various lightning counters.
